Compact units

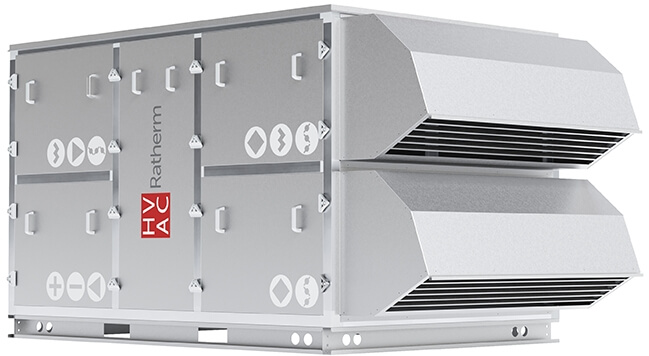

XK series- Compact indoor and outdoor air handling units

UNIVERSAL SOLUTION

The XK series of compact units is a new range of ventilation and air conditioning devices offered by HVAC RATHERM. The new units are the result of continuous development and refinement in the production of monoblock systems. The use of the latest technologies, advanced material engineering, and the introduction of innovative structural solutions has allowed us to create a product that meets customer expectations.

The XK range was developed based on customer needs regarding the application, design, delivery, and operation of ventilation units.

All XK units are factory-equipped with a complete automation system, allowing the unit to be started immediately after installation and duct connection.

APPLICATION

Wide efficiency range 500-46000 m3/h
Wide range of air handling modules used
6 units sizes
Any configuration of duct connections
Compact unit dimensions

AVALIABLE CONNECTION SCHEME

COMPACT SUPPLY AIR UNIT XK 350 N HG210 HV

Efficiency: 35 000 m3/h

Heating power of the gas module: 210 kW

Horizontal supply outlet, bottom return inlet

SUSPENDED UNIT WITH PLATE HEAT RECOVERY XK 030 NWP HW30 CF14 HH

Efficiency: 3 000 m3/h

Heating power of the water heater: 30 kW

Cooling power of the DX coil: 14 kW

Horizontal supply outlet, horizontal return inlet

COMPACT UNIT WITH ROTARY HEAT EXCHANGE XK 125 NWR HW70 CW60 VV

Efficiency: 12 500 m3/h

Heating power of the water heater: 70 kW

Cooling power of the water cooler: 60 kW

Horizontal supply outlet, bottom return inlet

AIR HANDLING UNITS

Effective air exchange is essential in every building. A lack of proper ventilation can be extremely dangerous for the building's occupants. Insufficient oxygen levels, excessively high concentrations of carbon dioxide and other harmful gases can have very dangerous health consequences. Unpleasant odors, high humidity, and stuffiness are also symptoms of faulty or inadequate ventilation.

PRODUCTION, INSTALLATION, AND DELIVERY OF COMPACT XK VENTILATION AND XD AIR CONDITIONING UNITS

HVAC Ratherm provides professional solutions for the ventilation of large-area facilities. For nearly 20 years, we have been involved in the production, installation, and delivery of ventilation and air conditioning equipment for companies. We carry out orders throughout Poland.

HIGH EFFICIENCY AND ENERGY SAVINGS

Our advanced ventilation units allow for effective yet rapid ventilation, even in the largest facilities. The implemented EC (Electronically Commutated) direct current fans significantly reduce electricity demand, thereby lowering costs.

HIGHEST QUALITY WORKMANSHIP

The compact ventilation units we manufacture are built using the best components from well-known and reputable manufacturers. The thoughtful design ensures the devices are easy to keep clean.

Air conditioning equipment often operates under very difficult conditions. The steel used to construct the casing of the compact Ratherm XK ventilation unit significantly protects the device from damage, as well as adverse weather conditions.

RATHERM air conditioning units are also characterized by very good available static pressure.

REDUCED NOISE LEVELS

The use of modern components translates very positively into the reduction of noise generated by ventilation devices. A noticeable difference is felt when compared to lower-class units.

DECLARATION OF CONFORMITY AND HYGIENE CERTIFICATION

The compact ventilation and air conditioning units we manufacture comply with EU directives. The devices also hold a hygiene certification issued by the National Institute of Public Health. More information can be found in the download section.

EFFICIENCY OF THE COMPACT UNITS

One of the most important parameters of air conditioning units is their efficiency (capacity). This is an attribute that specifies the maximum amount of air that a given unit is capable of treating within one hour. The unit's capacity is expressed in m3/h. The required minimum capacity for a specific project is usually determined during the building's construction phase and depends on many factors, including its volume.

Our compact units achieve capacities ranging from 600 m³/h (for model XK 010) up to 32000 m³/h (for model XK 305). The available static pressure range varies from 150 to 600 Pa. For individual needs, we also develop sectional units with capacities of around 80000 m³/h.

HOW TO DETERMINE THE REQUIRED CAPACITY?

When making a decision about selecting the optimal compact air conditioning unit, capacity is one of the most important parameters. If changes are planned in the future, such as in the building's function or other parameters affecting the required capacity of the air conditioning unit, it is worth taking this into account right from the start.

The HVAC RATHERM ventilation unit selection program we have prepared allows you to easily determine the required equipment capacity. Should you have any questions or doubts, our sales department is at your disposal. We encourage you to ask any questions..

TYPES OF FANS

RATHERM compact units are equipped with Electronically Commutated (EC) fans. Depending on the selected model, single or multiwall configurations are used. EC fans have motors with an integrated electronics system. This solution enables very smooth control of the fan's rotational speed, which translates into noticeably quieter operation of the unit, as well as lower electricity consumption. The fans used in our devices are characterized by high quality and long service life. This directly translates to longer, trouble-free operation of the entire unit and a reduction in the unit's operating costs.

CATALOGUE

More information about the compact air conditioning units we manufacture (including example configurations, available connection diagrams, and technical parameters) can be found in the catalog, which you can download here.

ratherm-katalog-ratherm-solutions.pdf
